Introducing the Vibe 12

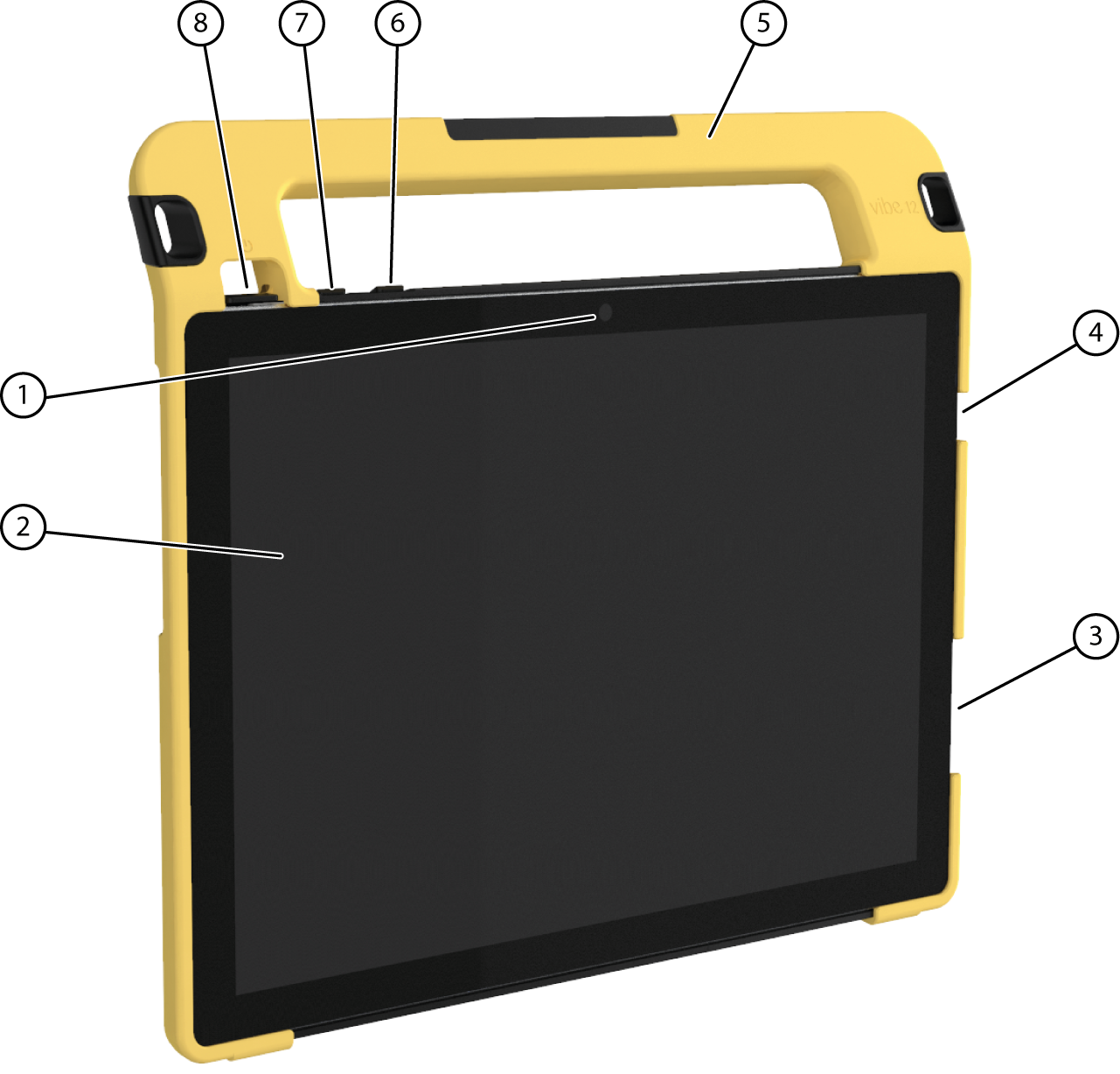

Figure 1. Vibe 12 front view
No. Identification Explanation
1 Front camera The device has a front camera for taking photos and videos.
2 Touch screen The device has a 12.3 inch capacitive touch screen. See Screen.
3 Power supply You can charge the device using this connection.
4 USB port type C You can charge the device and connect a USB C hub via the USB port. You can connect devices and peripherals via the USB C hub.
5 Handle Sturdy handle with opening for attaching a strap.
6 Volume control + You can increase the volume with this volume control. See Setting the volume.
7 Volume control - You can decrease the volume with this volume control. See Setting the volume.
8 On/off button This allows you to switch the device on/off or revert to sleep mode.

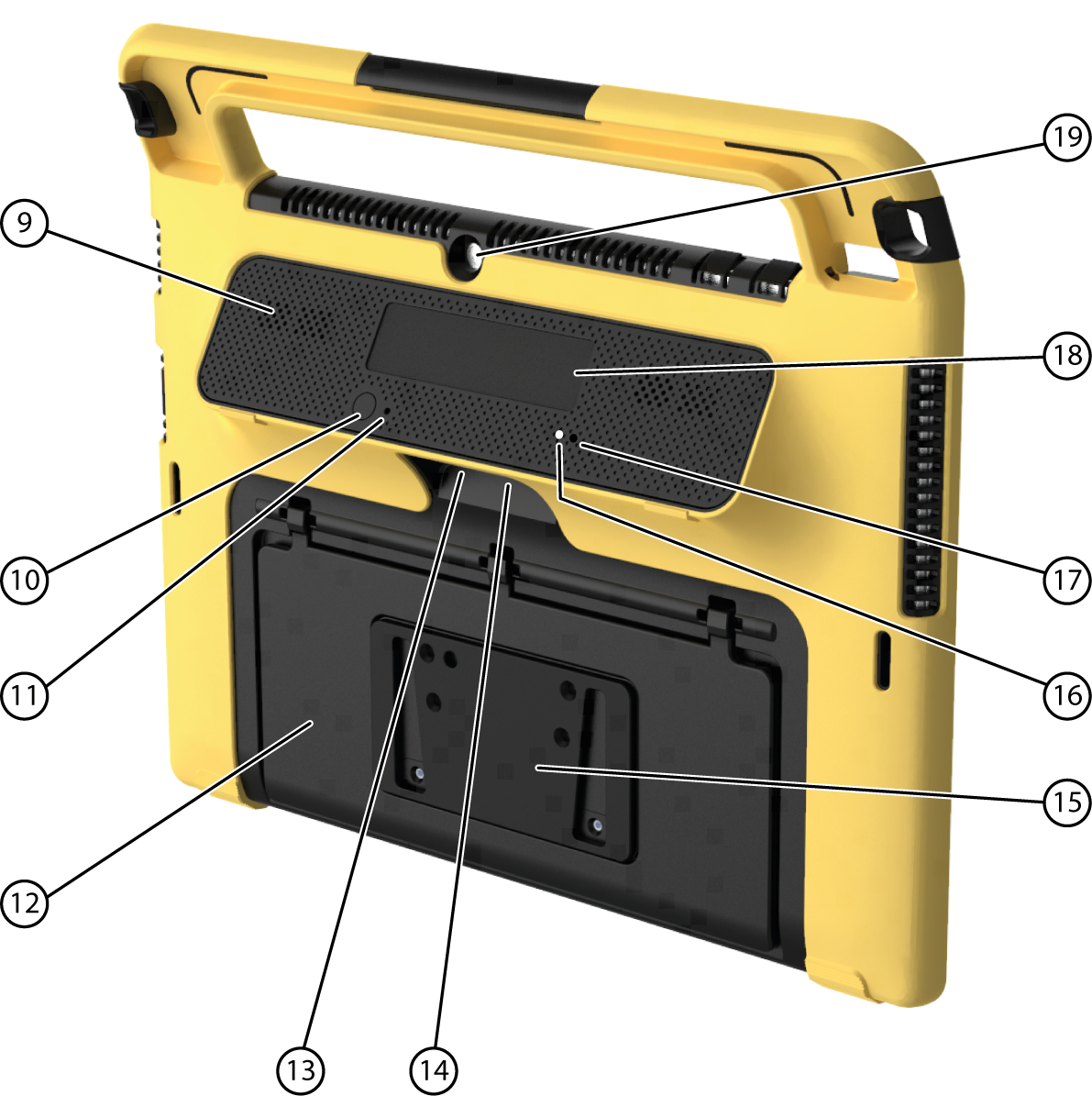

Figure 2. Vibe 12 rear view
No. Identification Explanation
9 Speakers The device has a number of powerful loudspeakers.
10 Escape This button is used:
  • to stop all speech/sound
  • to display the title bar and menu bar in Mind Express
  • to switch from scanning to Mind Express
  • to stop scripting in Mind Express
11 Reset This button is used to reset the second display and the loudspeakers.
12 Tray stand The Vibe 12 has a folding stand. The stand is designed so that the device can be ergonomically supported on a tray.
13 Connection switch 1 This input is for connecting switch 1. Only connect an unplugged, non-powered switch directly to the device!
14 Connection switch 2 This input is for connecting switch 2. Only connect an unplugged, non-powered switch directly to the device!
15 Mounting plate (optional) Mounting plate for REHADAPT mounting system. You can also select a mounting plate for the DAESSY mounting system.
16 Infrared receiver With the infrared receiver you can teach the device infrared codes.
17 Infrared transmitter With the infrared transmitter you can transmit infrared signals to other devices. Such as: sound systems, television.
18 Second screen The Vibe 12 is equipped with a second display on which text can be displayed.
19 Rear camera The device is equipped with a rear camera for taking photos.
