Changing a cell

You can use the Change cell action to change the content (label, symbol) and the settings (visibility, selectability, draggability) of a cell. You can also enable the action of another cell to be performed. These actions can be useful for playing games and can be used to selectively hide certain content in the communication grids.

The Change cell action is added to a cell. The action is performed by clicking on the cell. The actual action is performed by another cell that has an ID.

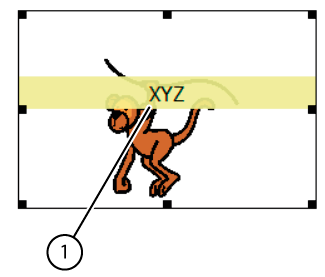

In Edit mode, the ID (1) of the cell appears in the center of the cell.
  1. Edit the cell (F5).
  2. Click Add item Ctrl+click=Copy item in the Actions options group.
  3. Choose Change cell from the Actions drop-down list.
  4. From the drop-down list, select one of the following options:
    Option Explanation
    Execute actions The actions of the cell with the specified ID are performed.
    Animated gif: pause Pauses the animated gif of the cell, or of the cell in which you entered the ID in the Cell with ID: field. Use the actionAnimated gif: play to continue playing the animated gif.
    Animated gif: play Continuously plays the animated gif of the cell, or of the cell in which you entered the ID in the Cell with ID: field.
    Animated gif: stop Stops playing the animated gif of the cell, or of the cell in which you entered the ID in the Cell with ID: field.
    Animated gif: play once Plays the animated gif of the cell once, or of the cell in which you entered the ID in the Cell with ID: field.
    Change label The label of the cell with the set ID is replaced by the set label.
    Store Message box The message is saved in the cell with the set ID.
    Scroll home label Moves to the beginning of the text in the label. Either of the actual cell, or of the cell in which you entered the ID in the Cell with ID: field.
    Scroll end label Moves to the end of the text in the label. Either of the actual cell, or of the cell in which you entered the ID in the Cell with ID: field.
    Scroll up label Moves the text in the label up. Either of the actual cell, or of the cell in which you entered the ID in the Cell with ID: field.
    Scroll down label Moves the text in the label down. Either of the actual cell, or of the cell in which you entered the ID in the Cell with ID: field.
    Change selectable The selectability of the cell with the set ID is changed.
    Change draggable The draggability of the cell with the set ID is changed.
    Change symbol The symbol of the cell with the set ID is replaced by the set symbol.
    Count label A count label is a label with a number, for example "9000", "2 dogs", "house number 120". You can increase or decrease the count label of the cell with set ID with a specified value, or you can equal the count label to a set value.
    Replace The cell is replaced by another cell. To replace the cell, you need to enter the ID of the cells.
    Change visibility The visibility of the cell with the set ID is changed.
  5. Click OK.
